Code Foils x Foil Drive Integrated Mast
Ultra High Modulus. Fully Integrated. Zero Compromise.
This integrated mast is the new flagship in Code’s Foil Drive lineup, designed from the ground up to deliver maximum stiffness, refined hydrodynamics, and seamless integration with the Foil Drive system.
Built using Ultra High Modulus carbon and an all-new layup, the mast delivers a noticeably sharper, more direct ride feel with increased efficiency and power transfer. Every element has been engineered to meet the demands of riders pushing performance in Foil Drive across surf, downwind, flat water, and assisted riding.

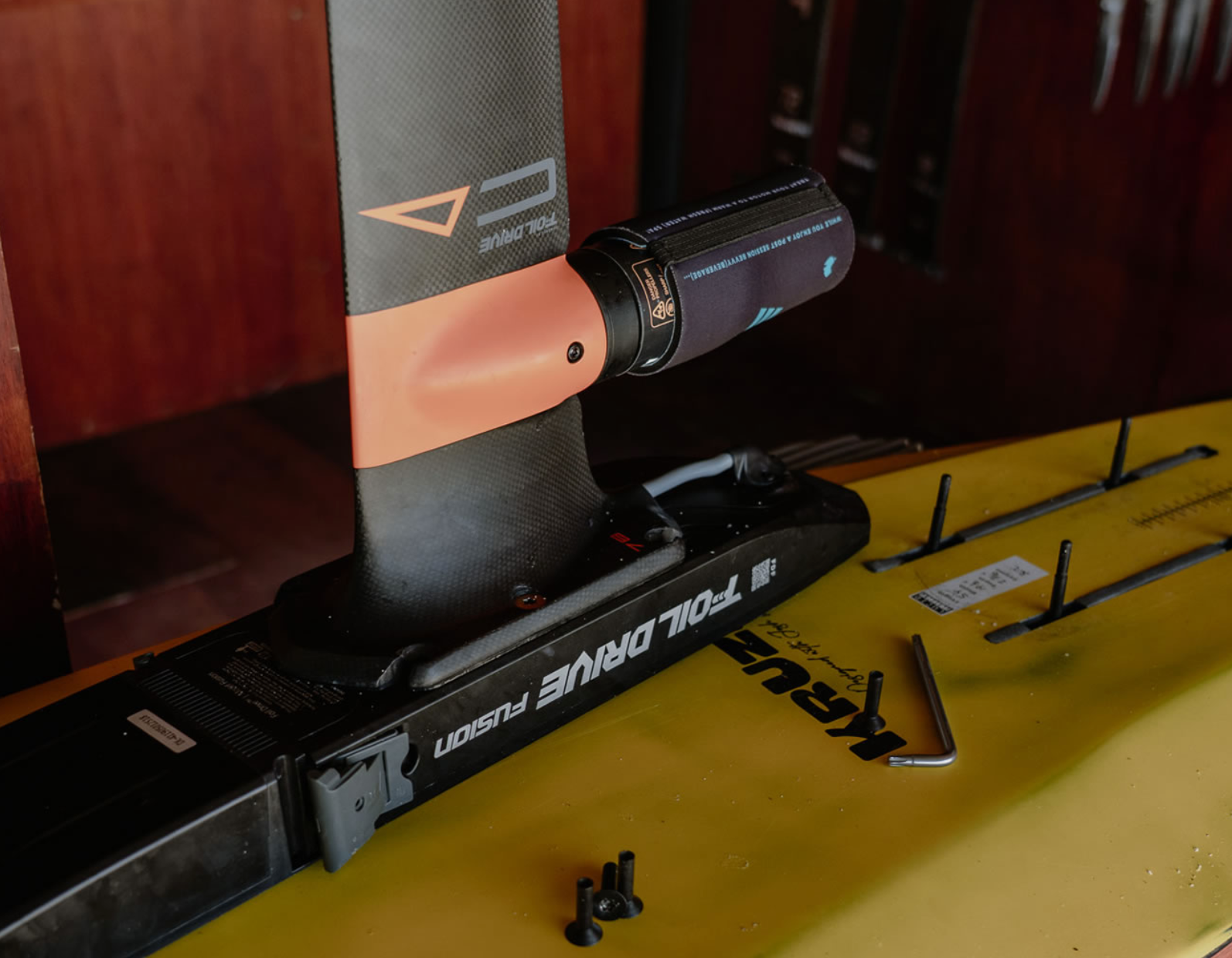

Designed in collaboration with Foil Drive, this mast integrates cleanly and precisely, eliminating flex and unwanted movement while maintaining optimal hydrodynamic efficiency.
Two purpose-built pod height options are available, allowing riders to fine-tune their setup based on rider weight, riding style, and performance goals.

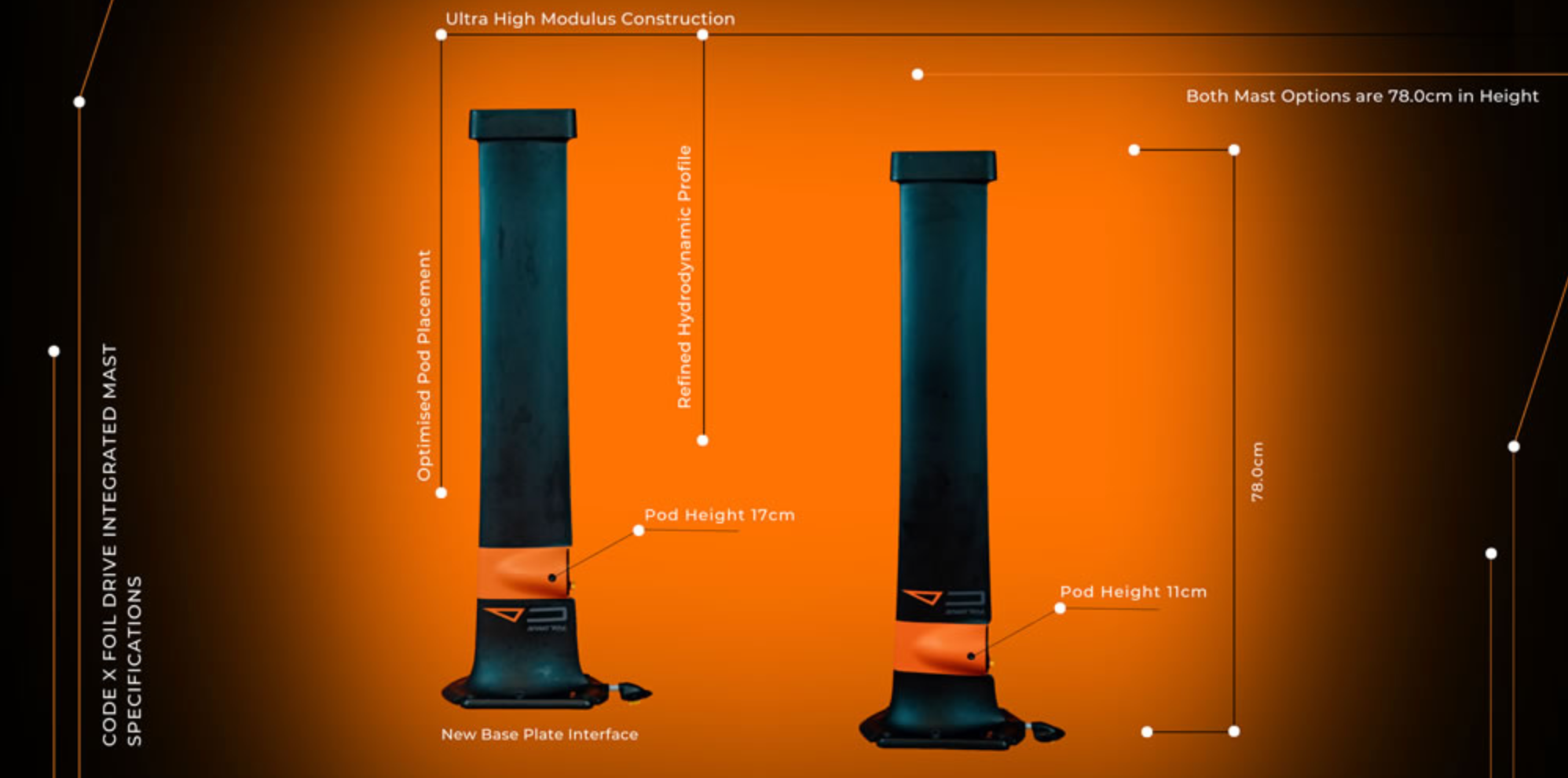

Both masts are 78cm in height, measured from the top of the base plate to the bottom of the Tuttle connection. This height has been extensively tested with ambassadors Josh Ku and James Casey to ensure optimal performance across a wide range of conditions.
Pod Height Options
11cm Pod Height
Designed for ultimate performance riding, lighter riders, and surf-focused use. This position offers the most responsive feel with minimal drag and maximum connection to the foil.
17cm Pod Height
Designed for everyday riders, broader weight ranges, and riders focused on motoring upwind, as well as surf, downwind, and flat water use. This position provides increased stability and efficiency during powered riding.
Code Foils offer a 12 month warranty on foils and hardware.
*Please Note - Foil Drive Motor and Battery are not included with the Code Foils Integrated mast. You will need a V2 or HP Stator for seamless integration.
Whats included ?
Contents When purchasing your Code Foils X Foil Drive Integrated Mast.
You will receive the following items
• Carbon Code X Foil Drive Integrated Mast
• Mast Cover
• Integrated Mast Bolt Kit - Code T30 Tool -
2 x M6 T30 30MM BOLTS FOR FUSELAGE CONNECTION
• Foil Drive Motor Bolt Pack - 2 x M8 Titanium Integrated Mast Bolts
- 4 x M4 10mm bolts - For motor to mast installation
• Puck Hardware - 1x M5 52mm Titanium CSK Screw - 1x M5 20mm Titanium Barrel Nut

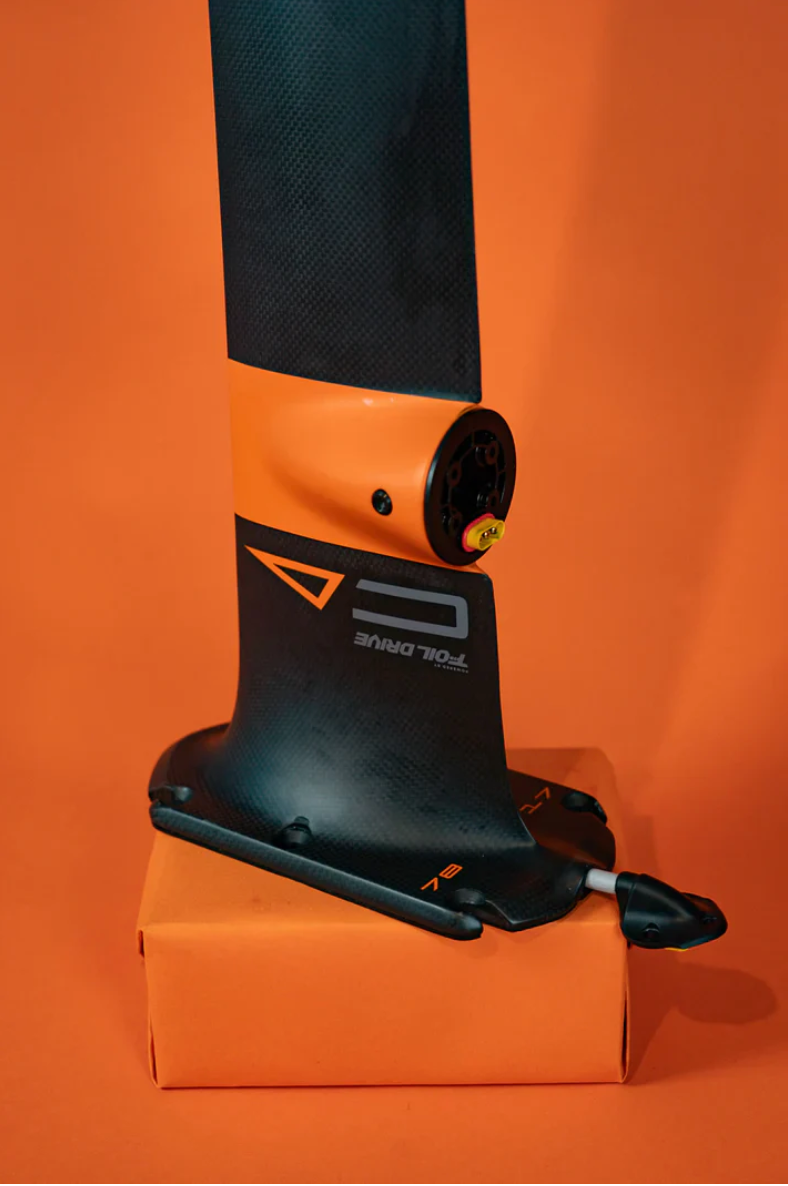

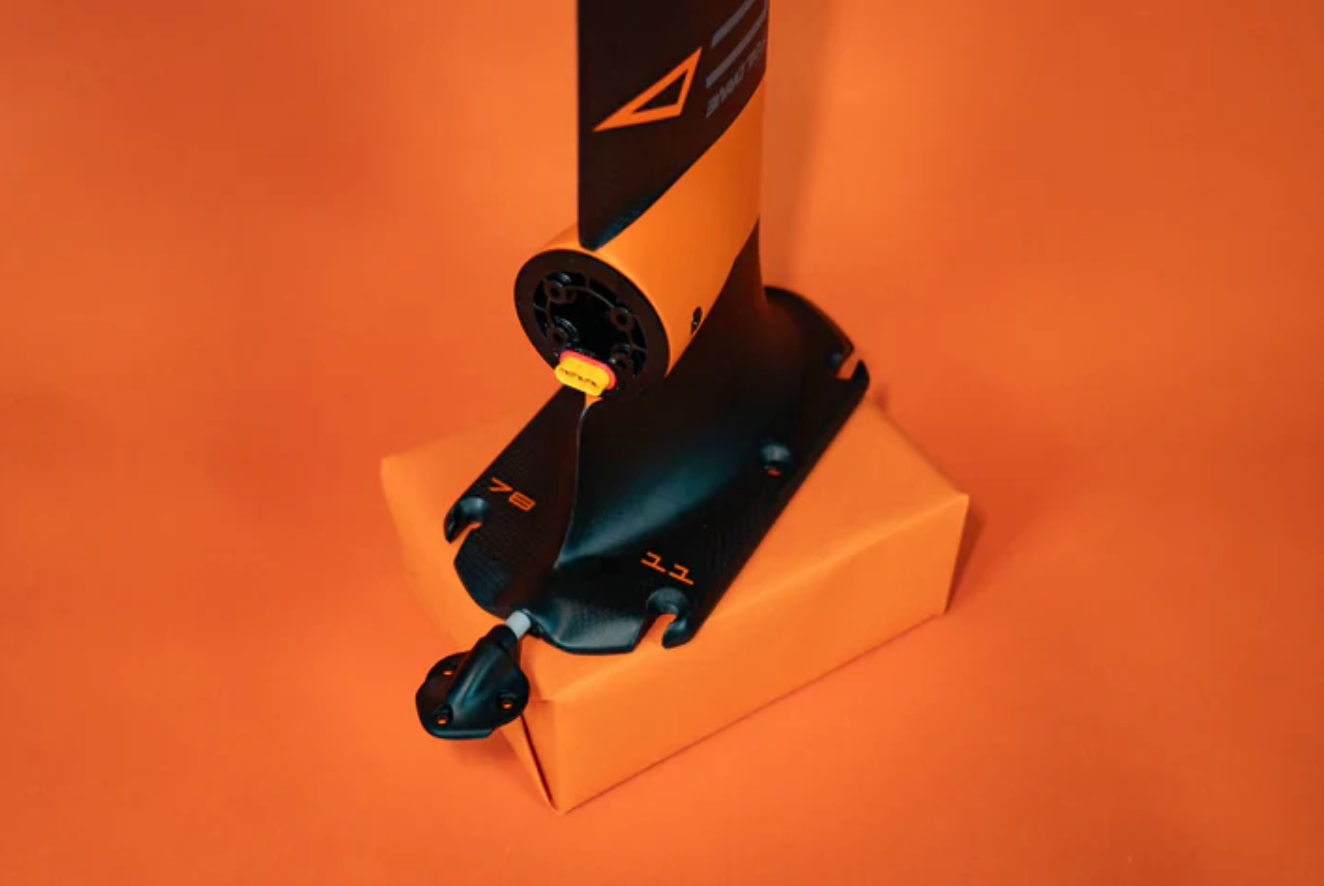

ADDITIONAL DETAILS Ultra High Modulus Construction A completely new UHM layup delivers maximum stiffness and instant energy transfer, giving riders more power, more responsiveness, and a dramatically sharper ride feel. Optimised Pod Placement The Foil Drive pod sits further forwards giving a smoother ride when motoring and offers less swing weight from the motor when turning. Two Performance POD Heights 11cm: Higher-performance, lighter riders and surf-focused riders 17cm: Everyday riders and broader weight ranges and people needing to motor further New Base Plate Interface The redesigned base plate perfectly matches the Foil Drive unit’s width for cleaner water flow and improved hydrodynamics, with integrated plastic isolators to prevent electrolysis. Integrated Bolt System Includes the new Integrated Mast Bolts for direct mast-to-unit connection, making set-up and transport seamless.
